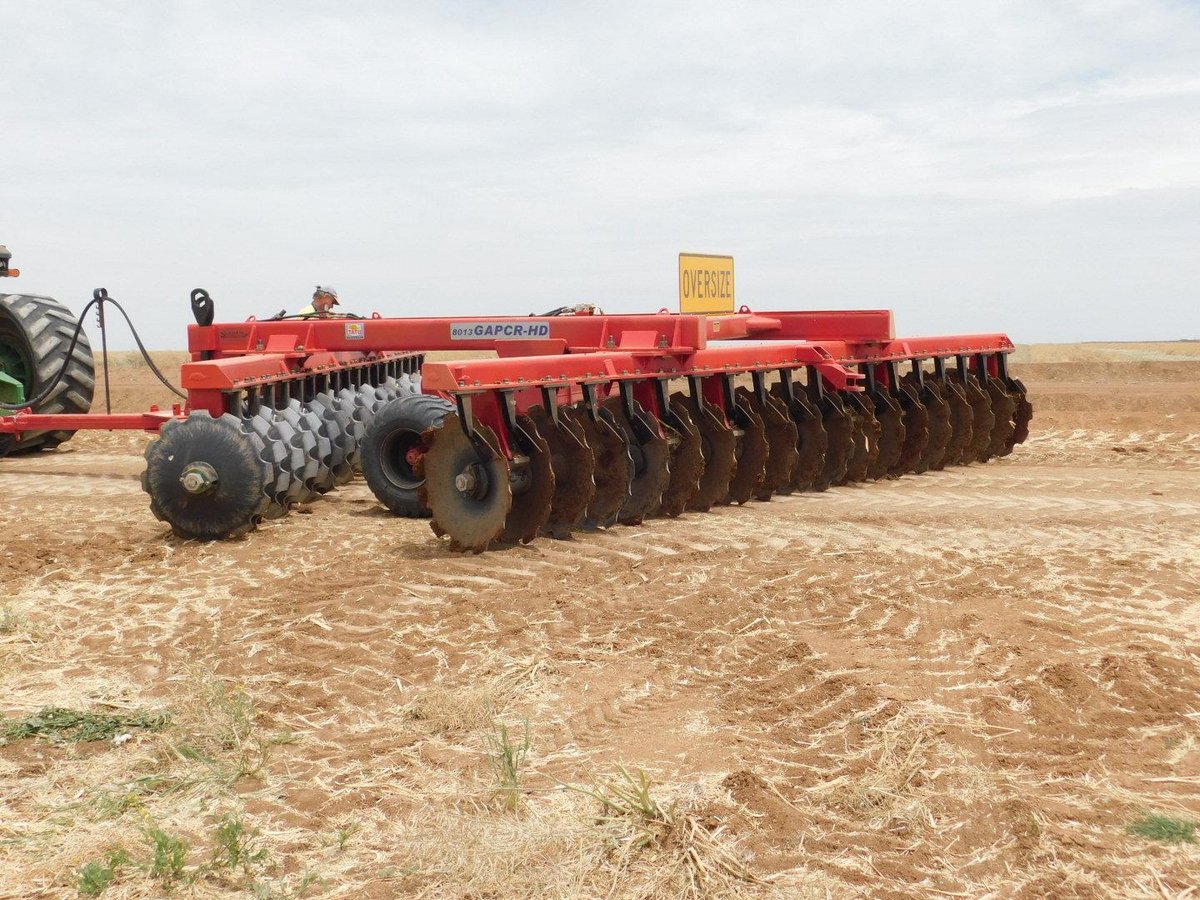

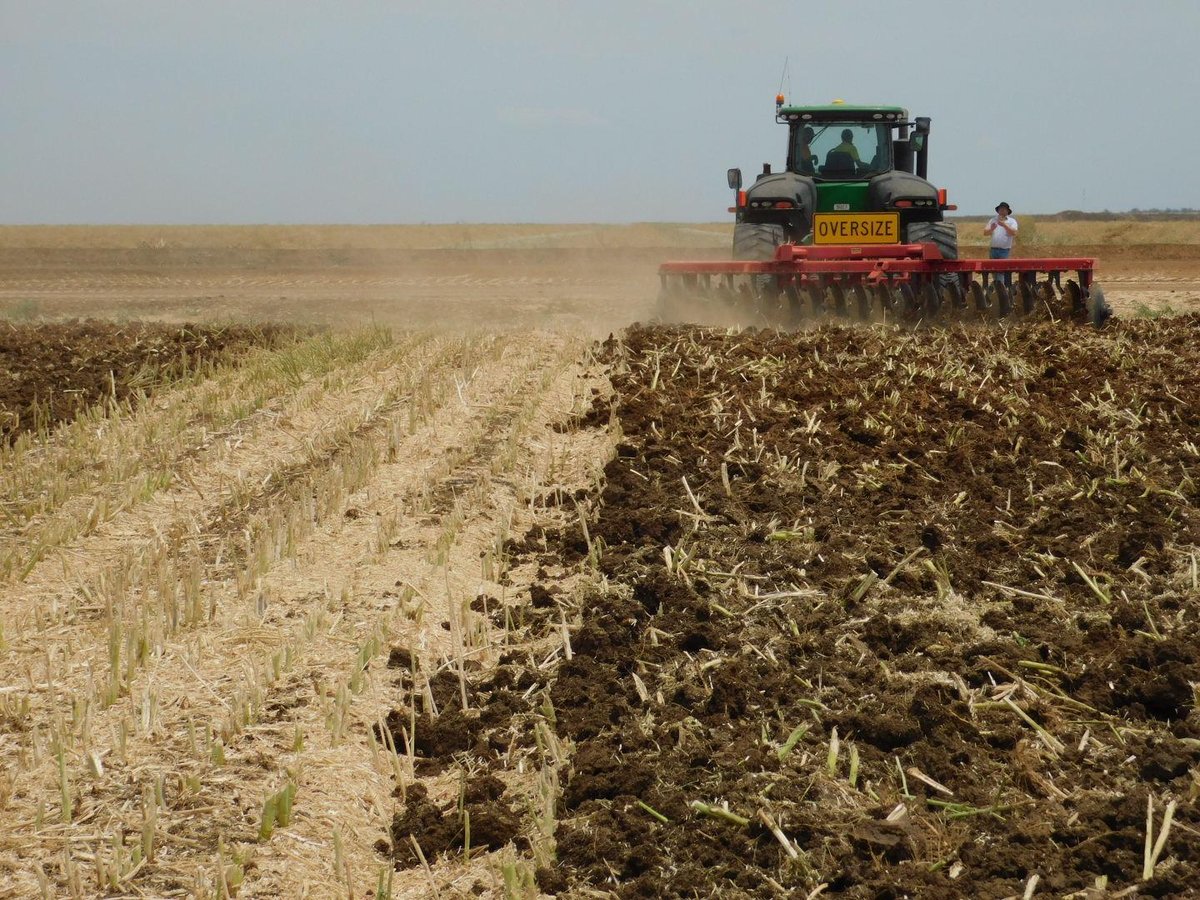

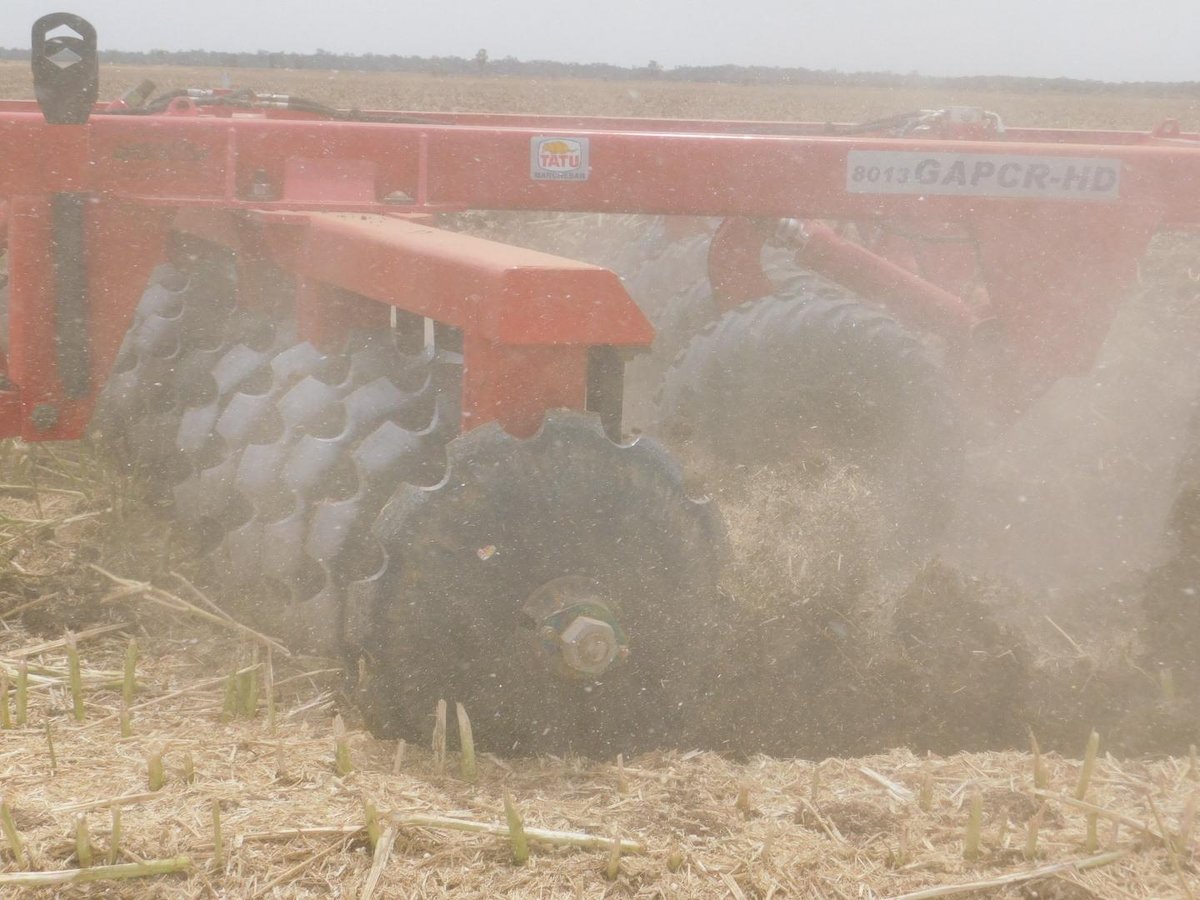

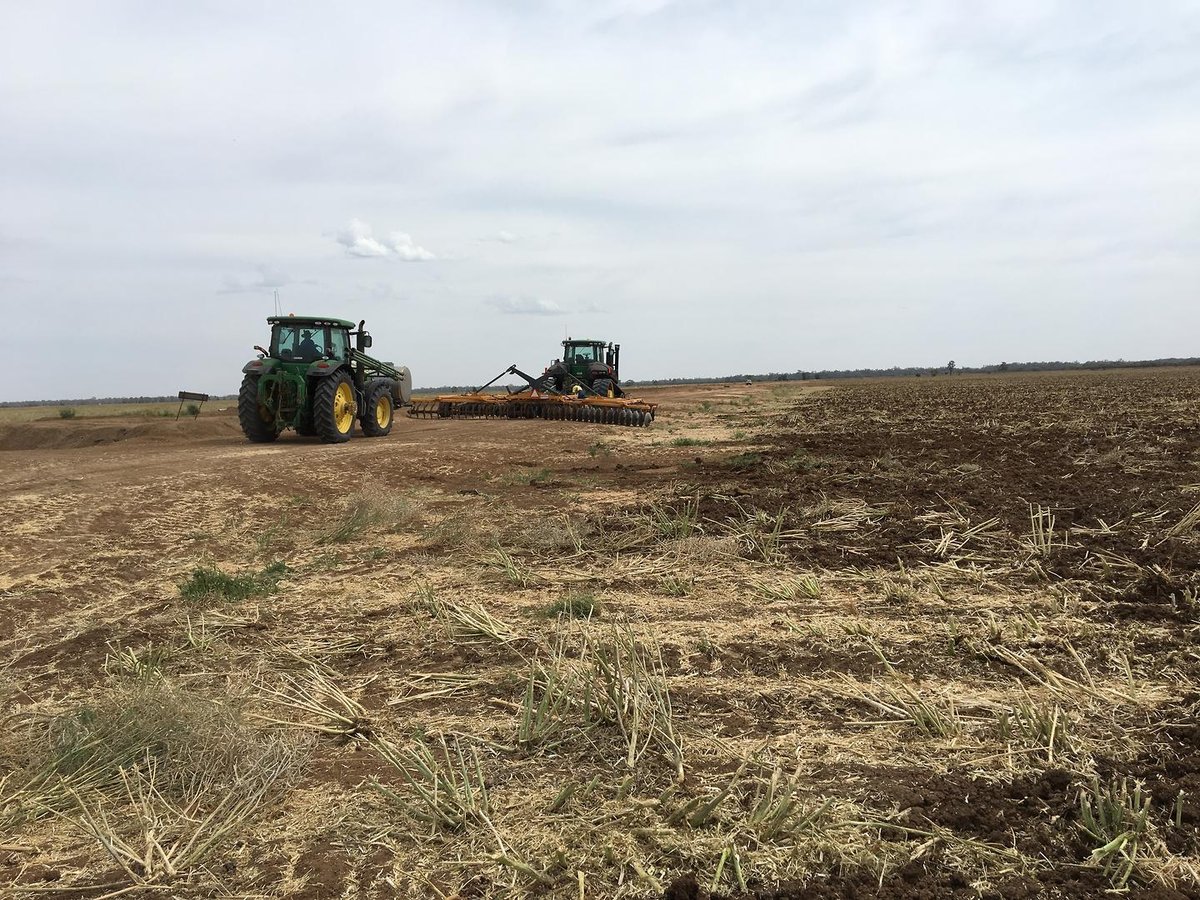

Tatu Gapcr HD 8013 Rigid 37 Plate Offset Disc New

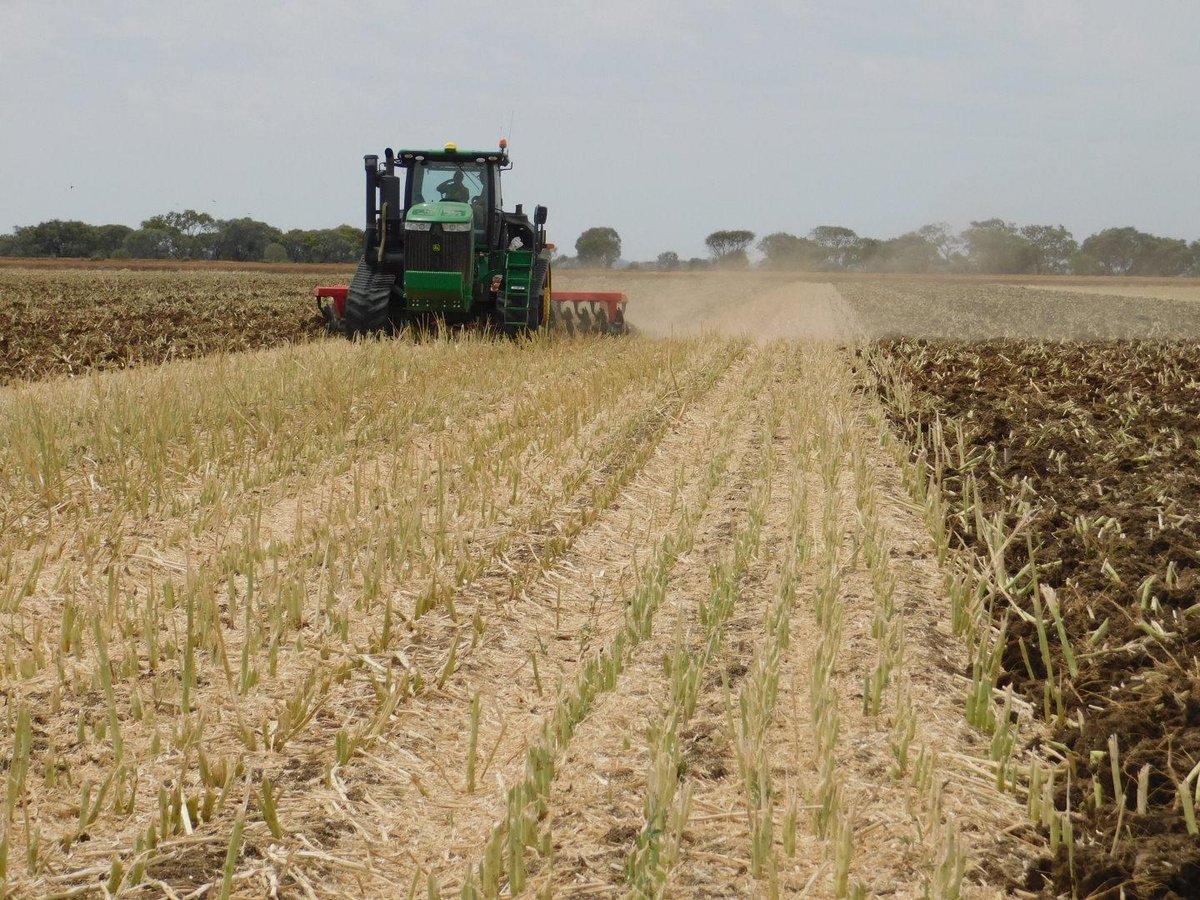

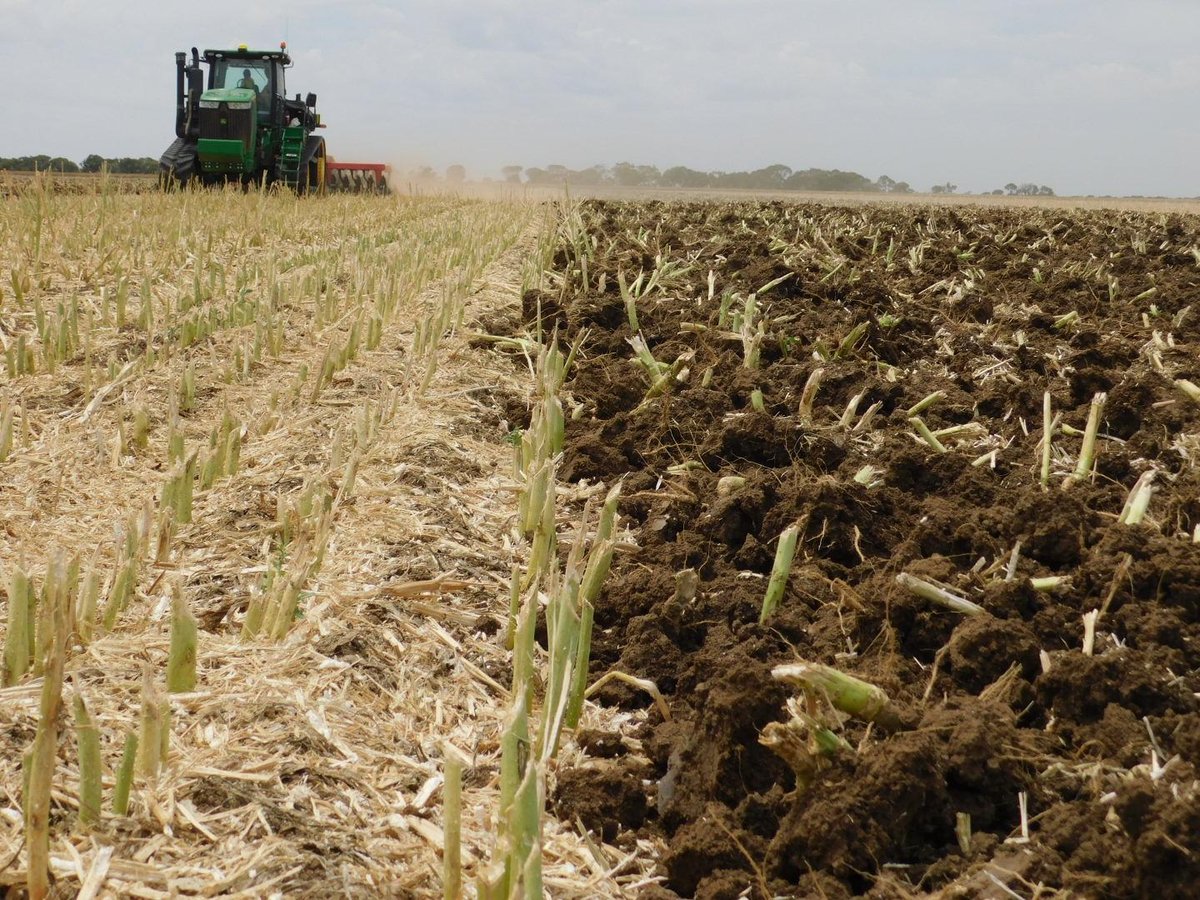

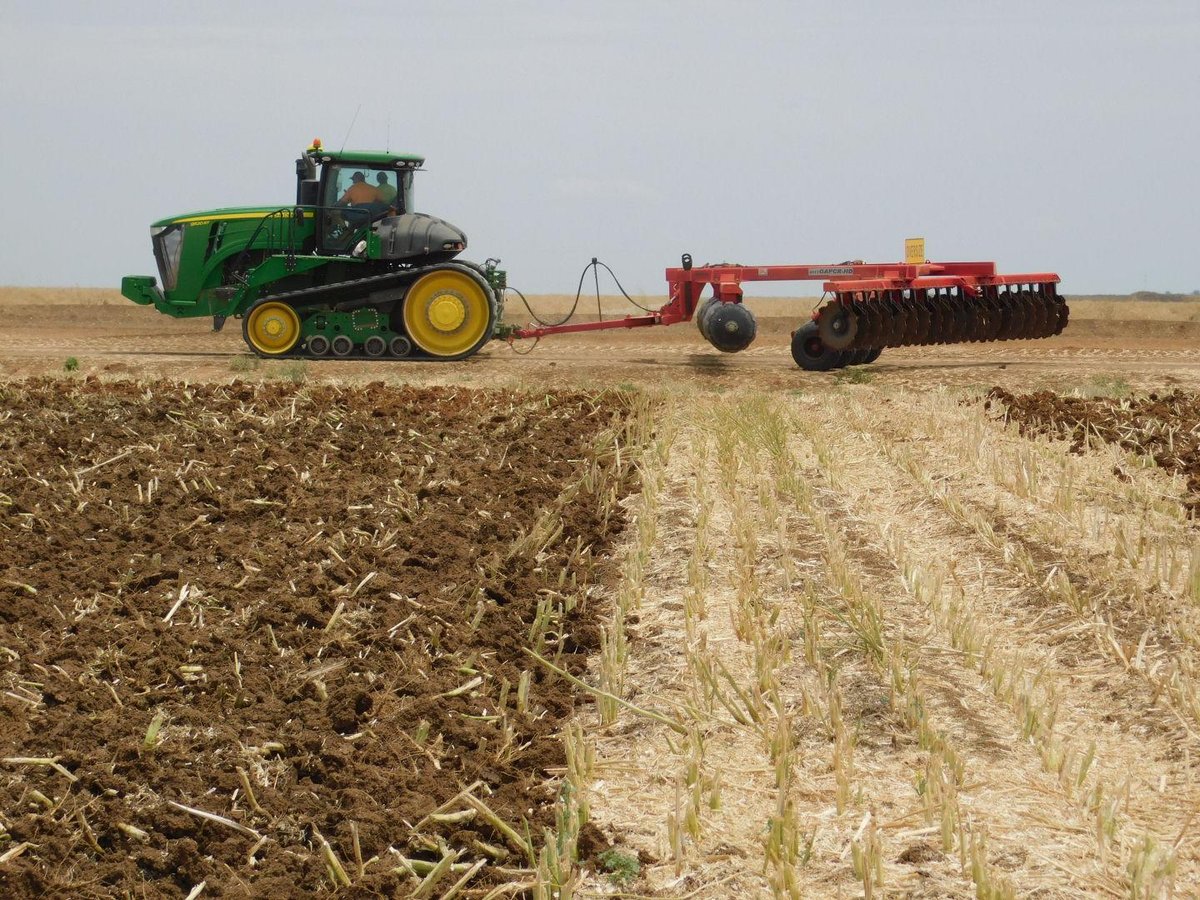

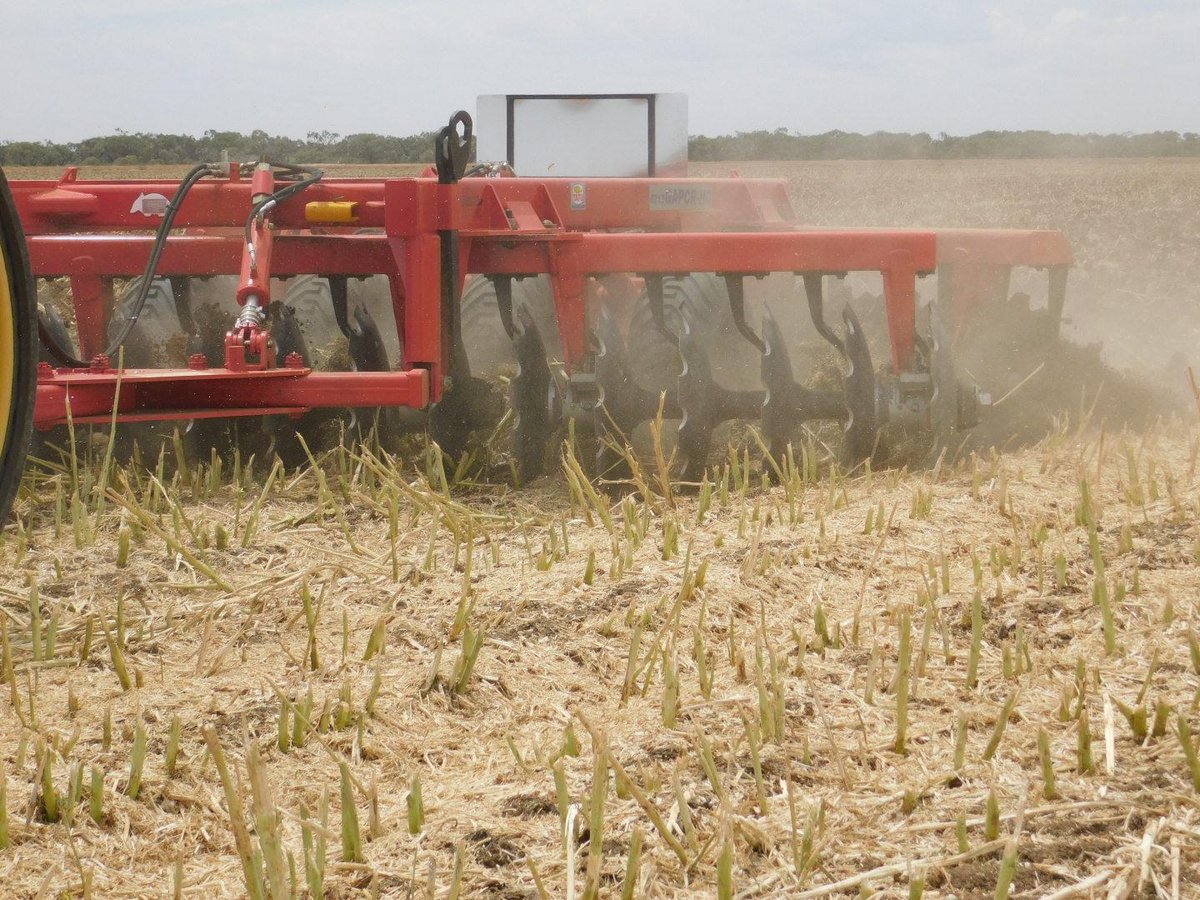

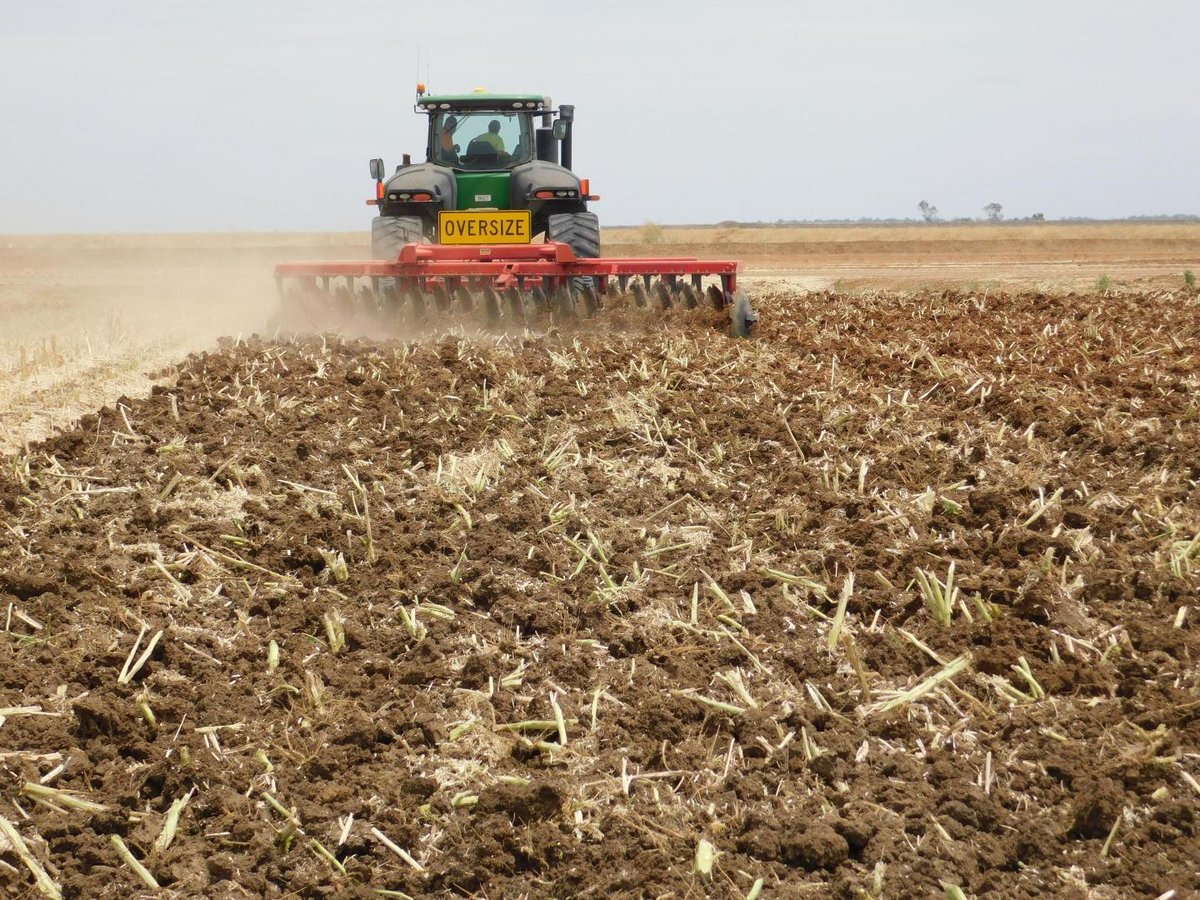

The TATU GACPR HD 37 Plate (Heavy Duty) 8013 model is a Brazilian quality-built trailed Offset Disc Plough, perfect for working up hard ground, digging up suckers & all primary pass jobs.

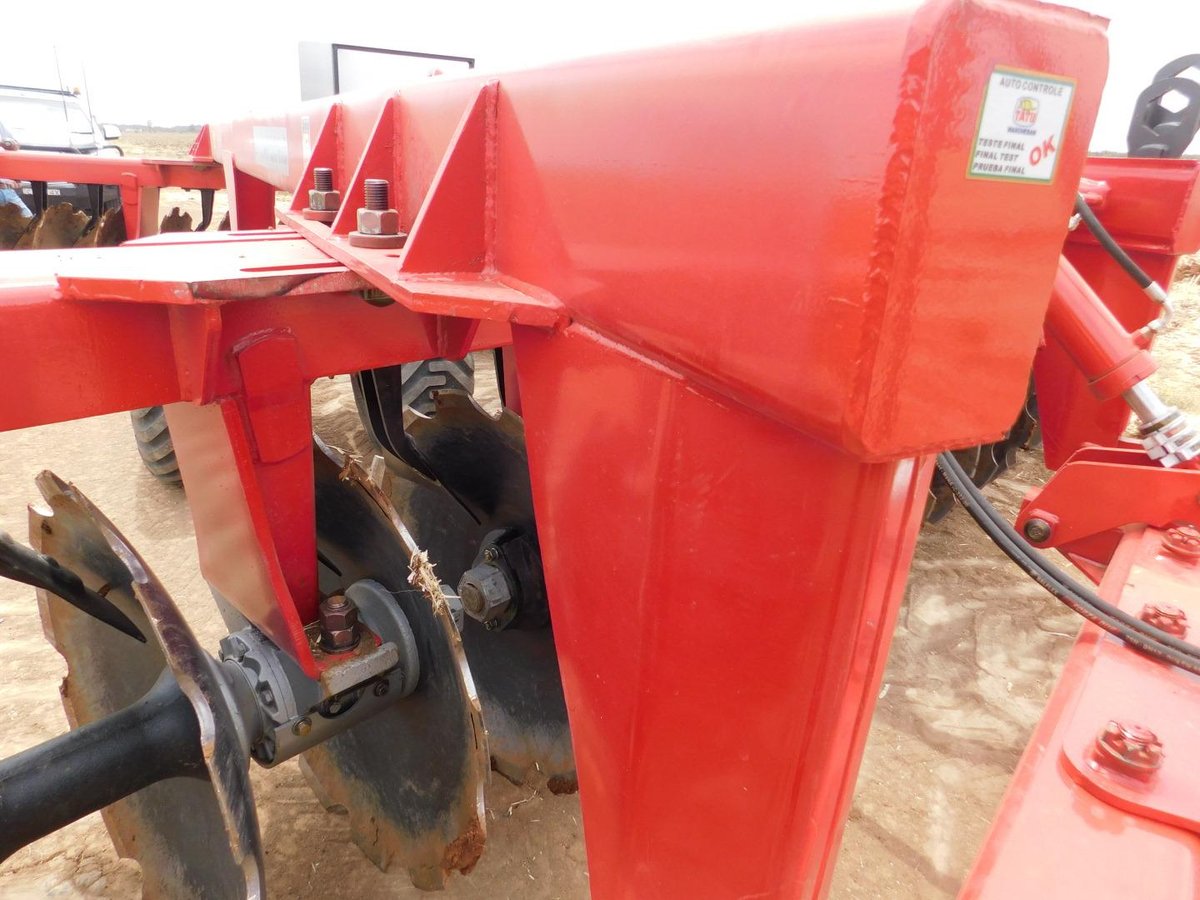

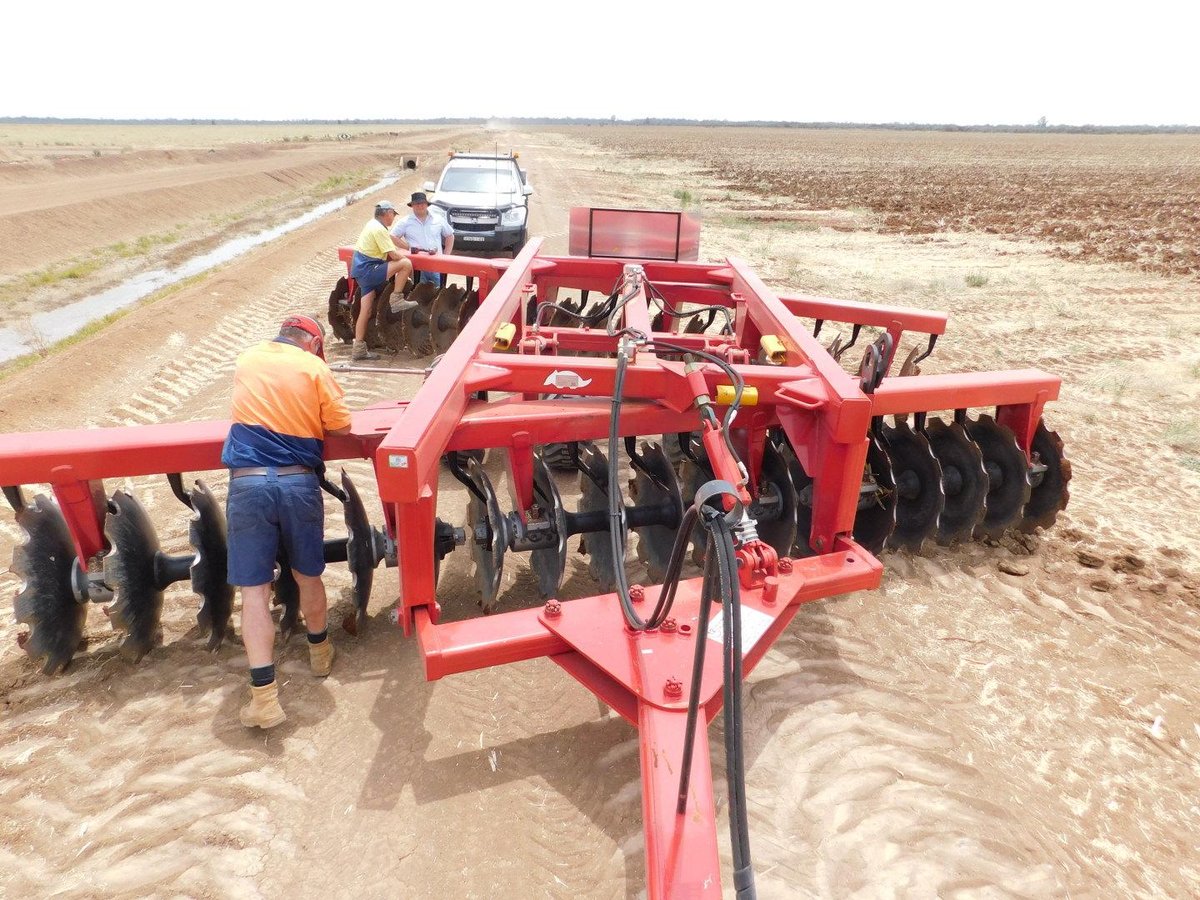

It has a super strong Double C-Section main centre frame which gives it extra strength and weight for penetration. Couple that with a huge 2 1/2" round axle with long life, low maintenance Oil Bath Bearings, makes this one serious machine!

GAPCR HD 8013 features:
* 340mm spacing which is perfect for deep penetration and being able to turn over the soil nicely
* 2 1/2" axles with Cast Spool Spacers for extra weight and robustness
* Long Life, Low Maintenance Oil Bath Bearings with Double Taper Roller Bearings

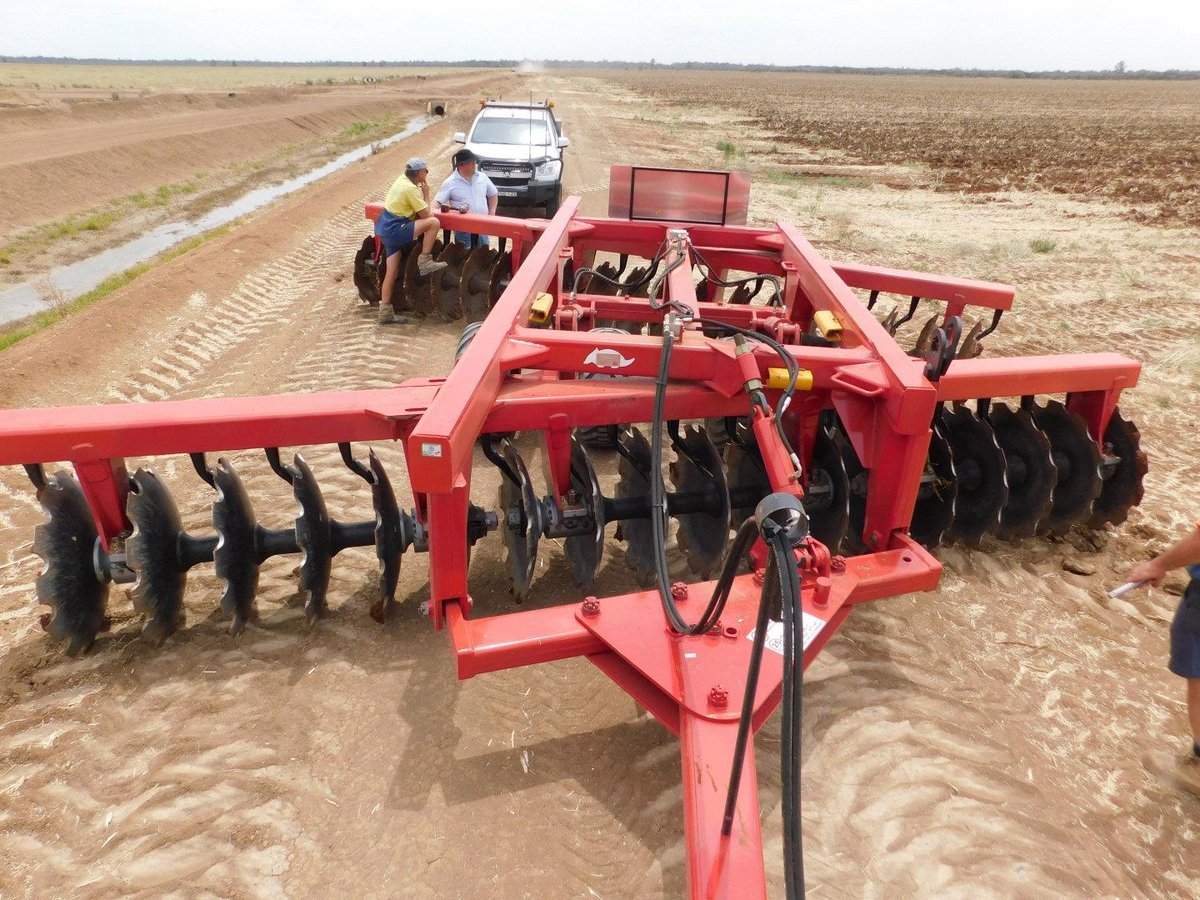

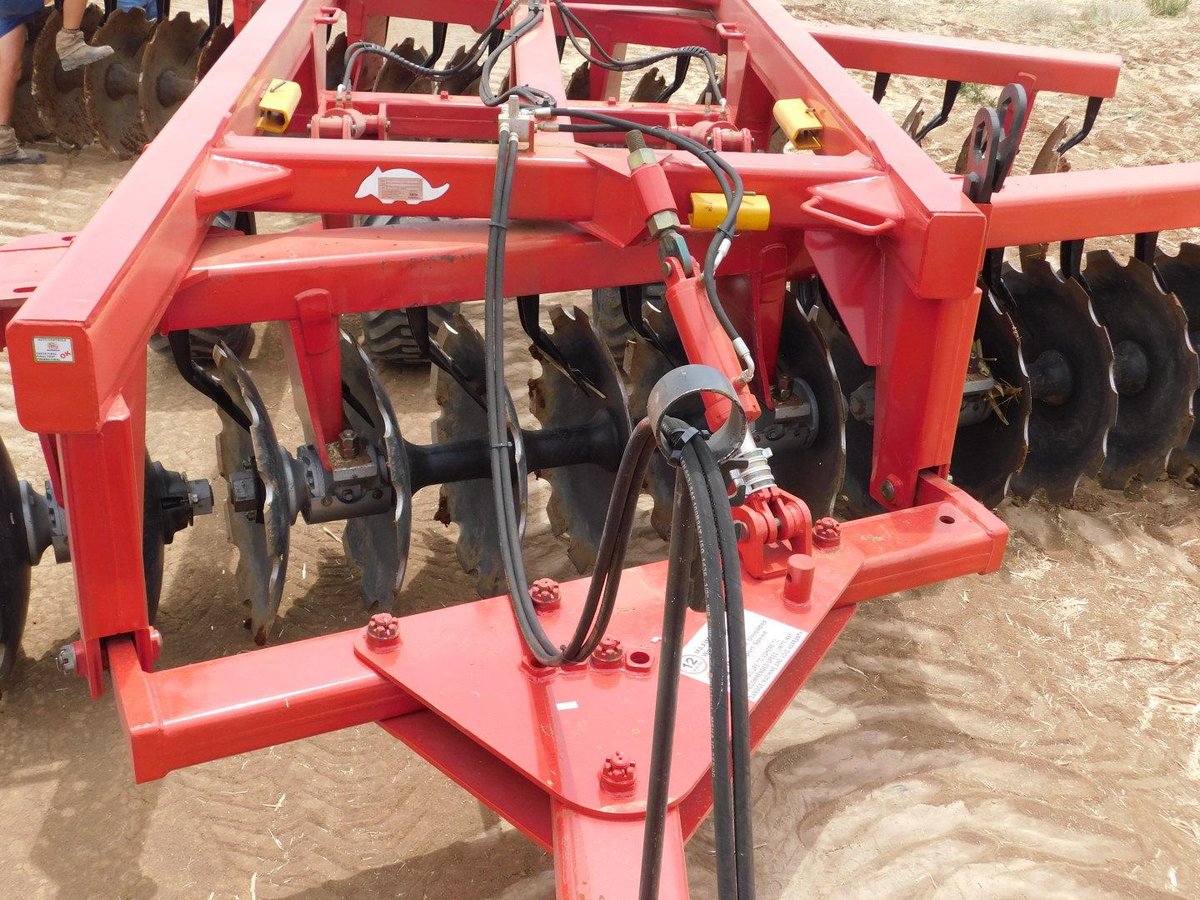

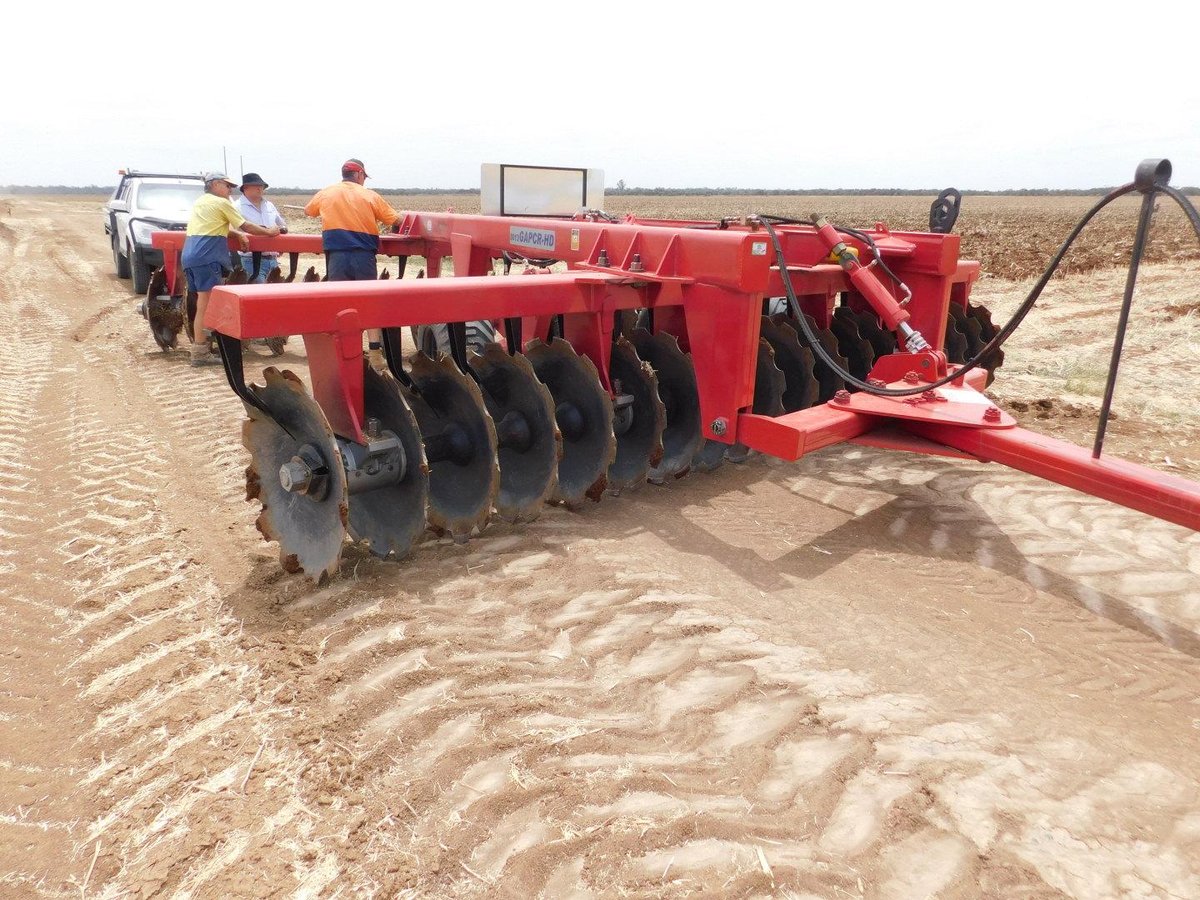

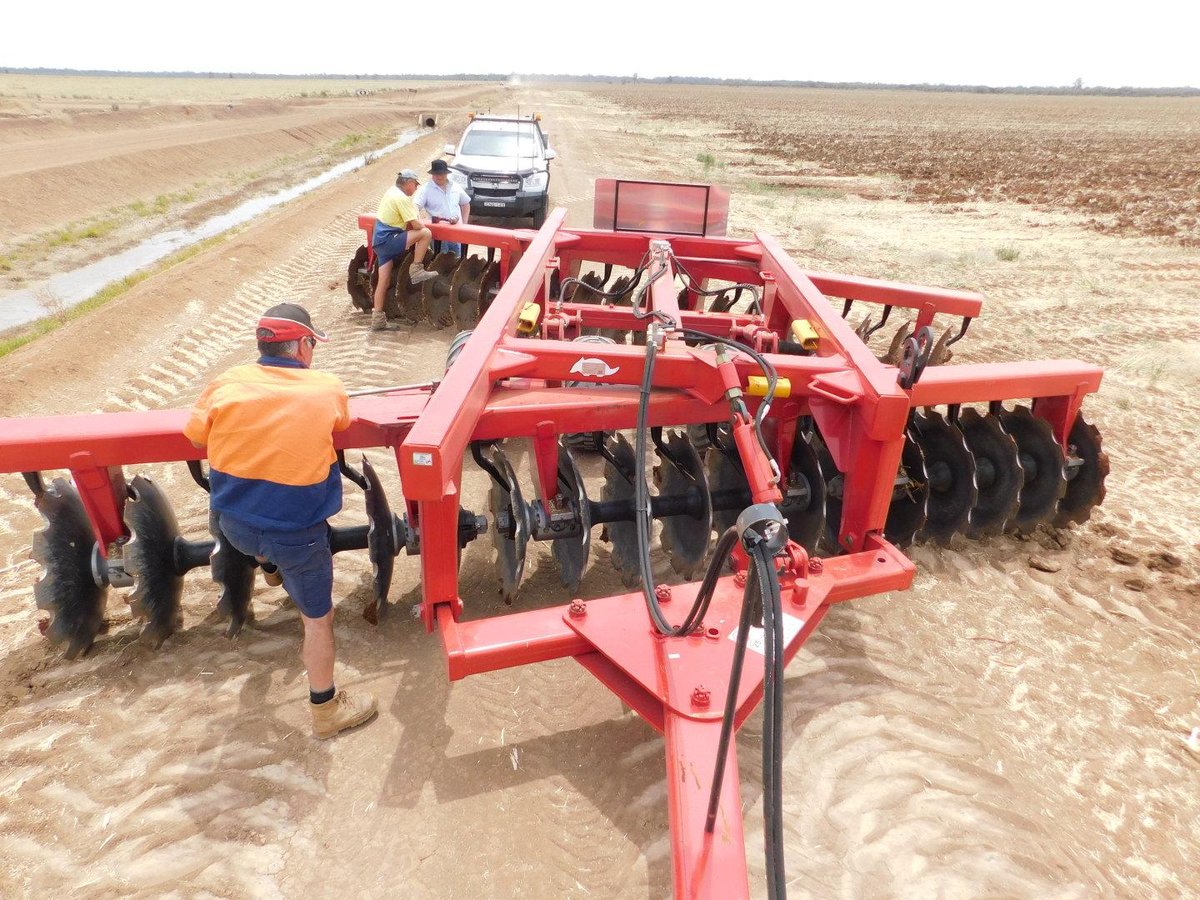

* Swivel Tongue on drawbar with simple chain & spring assembly for easy hook up

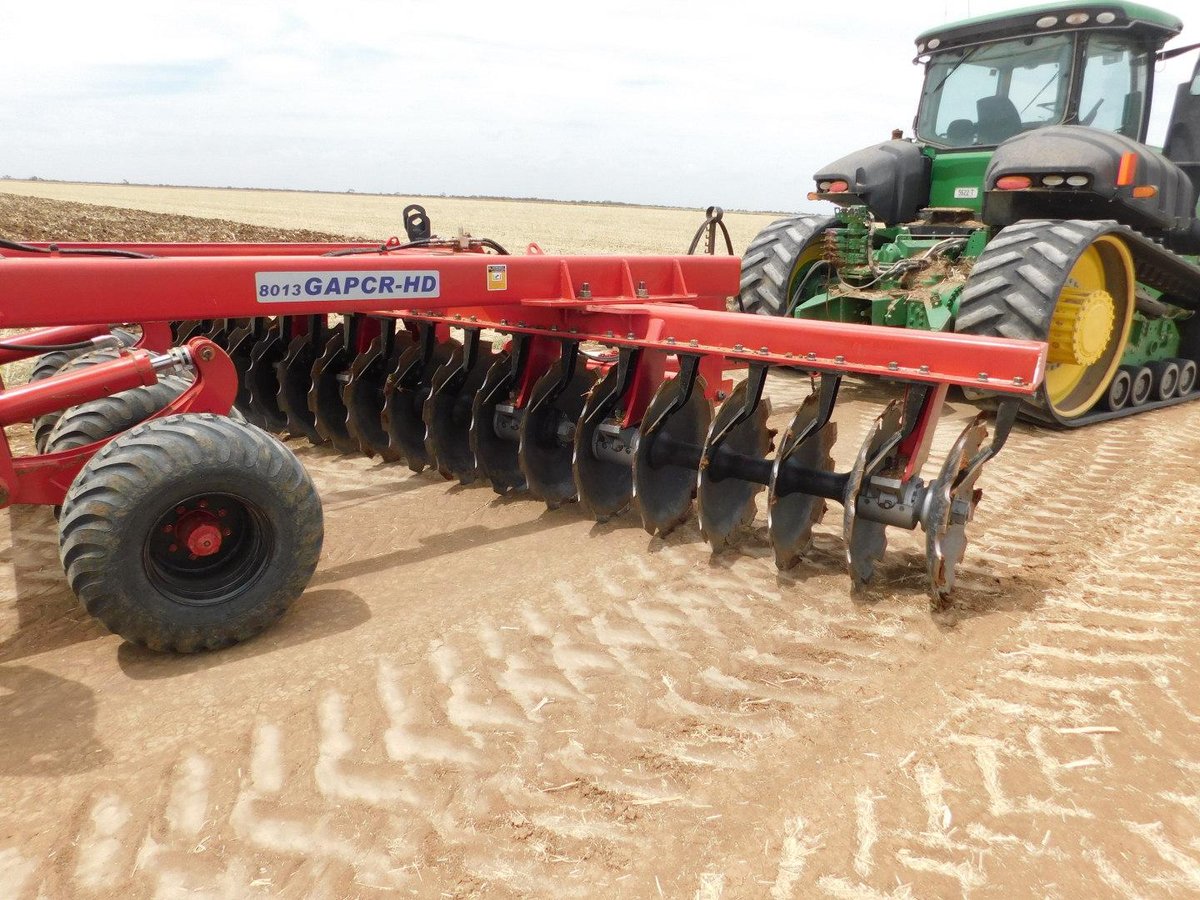

* 4x 400/60x15.5 flotation tyres for easy transport and depth control
* Simple depth control system by using depth stops on hydraulic cylinders

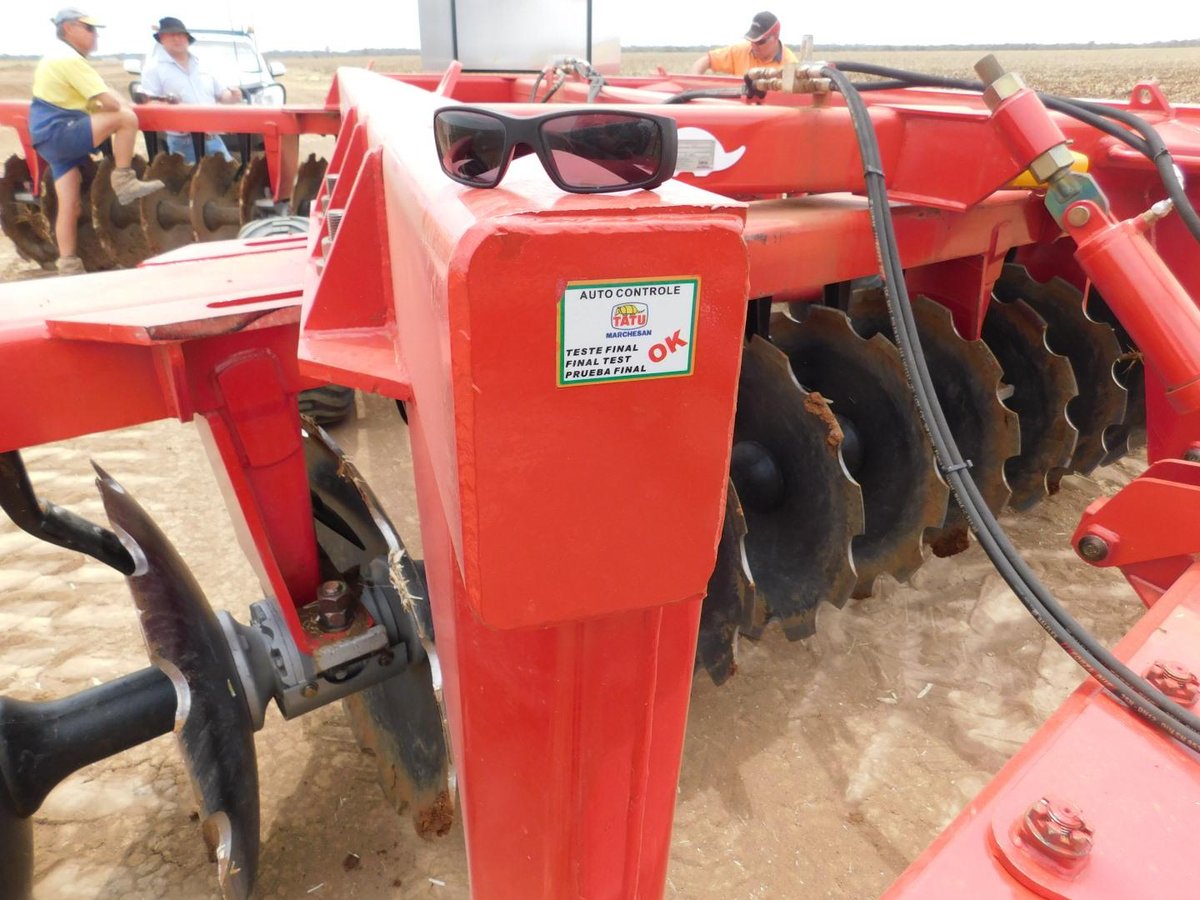

* Super strong, simple frame made from double C-Section steel, fully gusseted.
* Mud scrapers fitted as standard

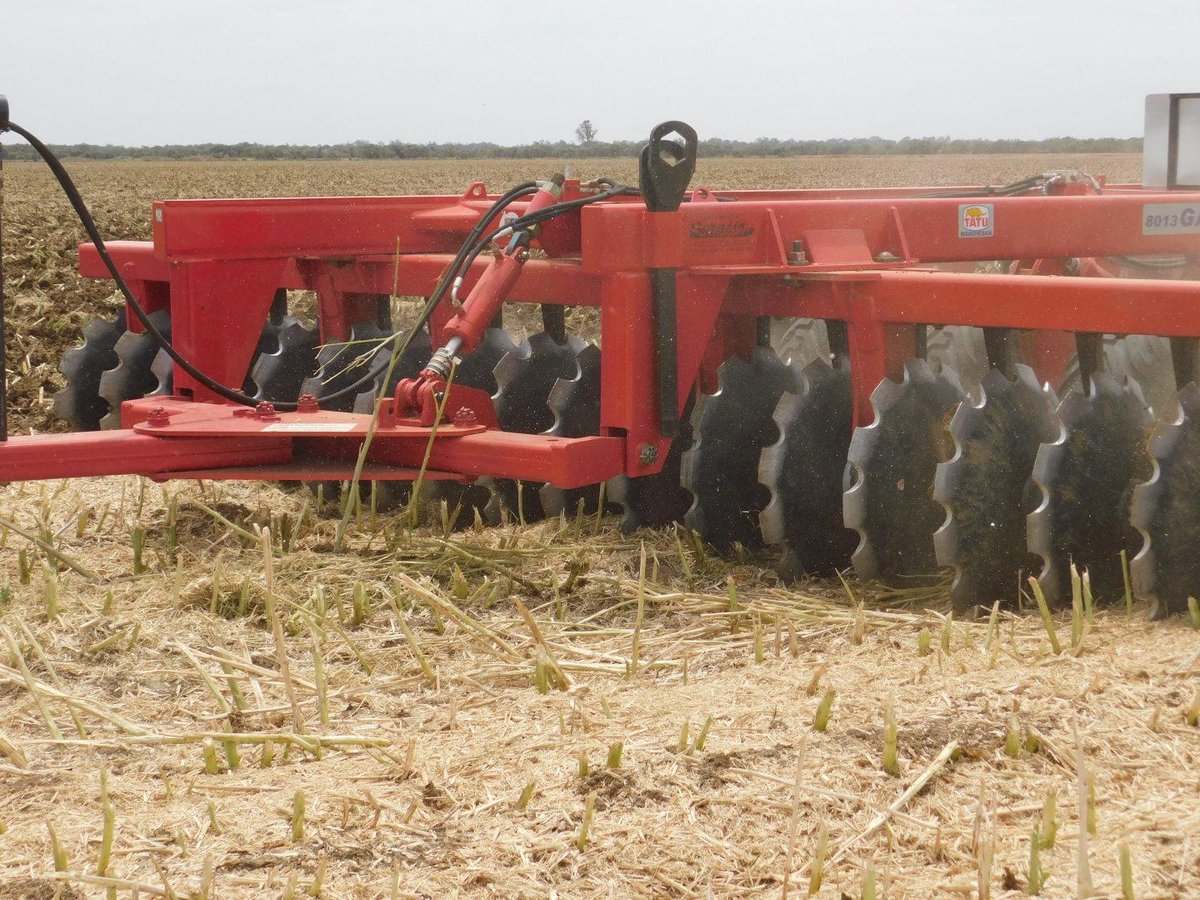

* Adjustable hydraulic cylinder on hitch

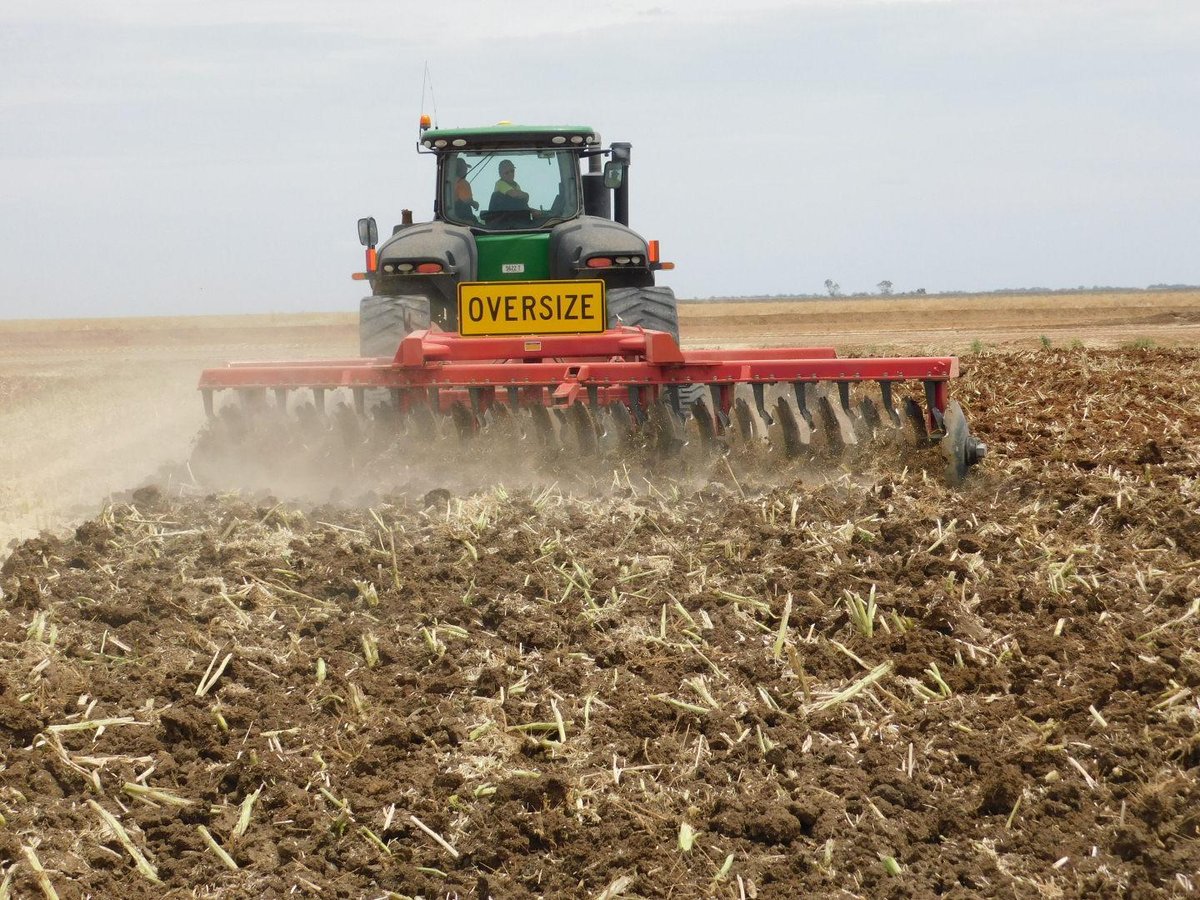

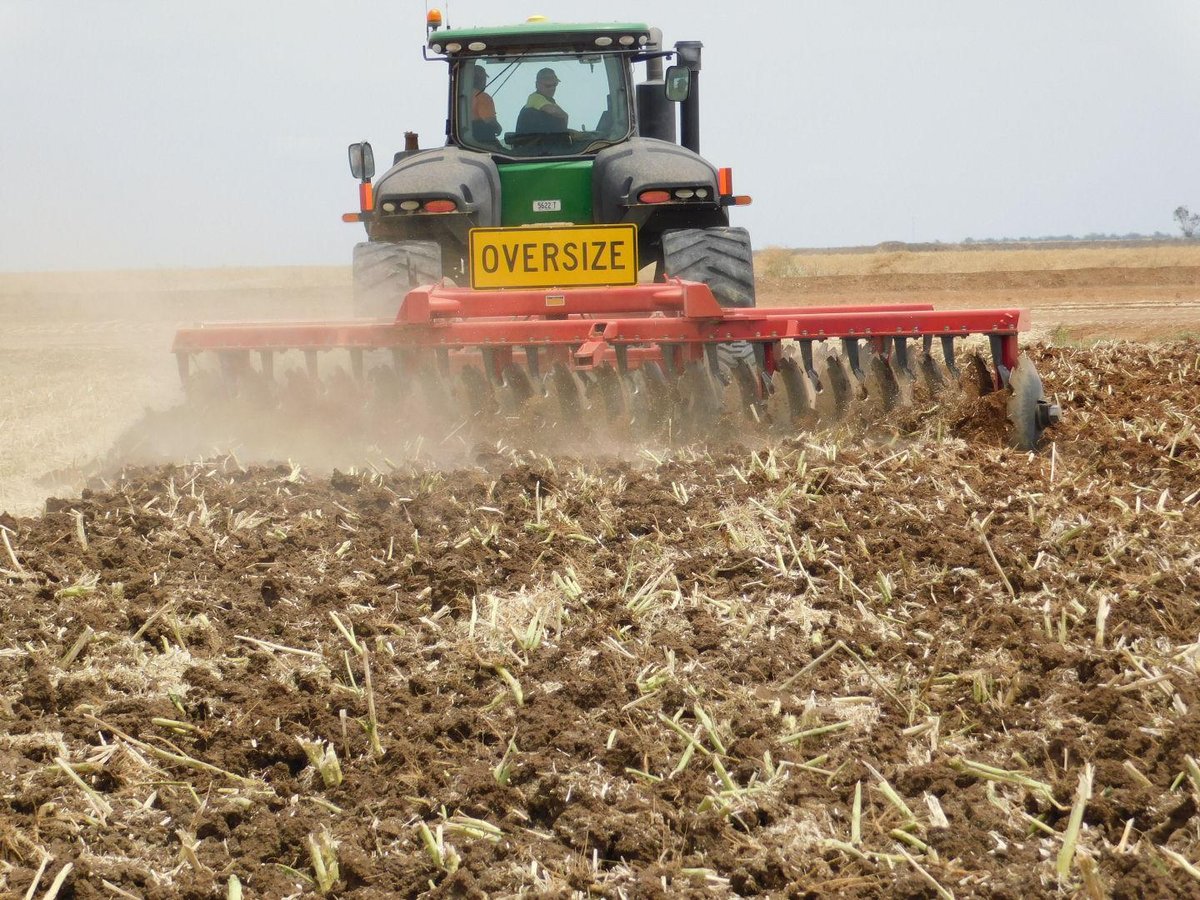

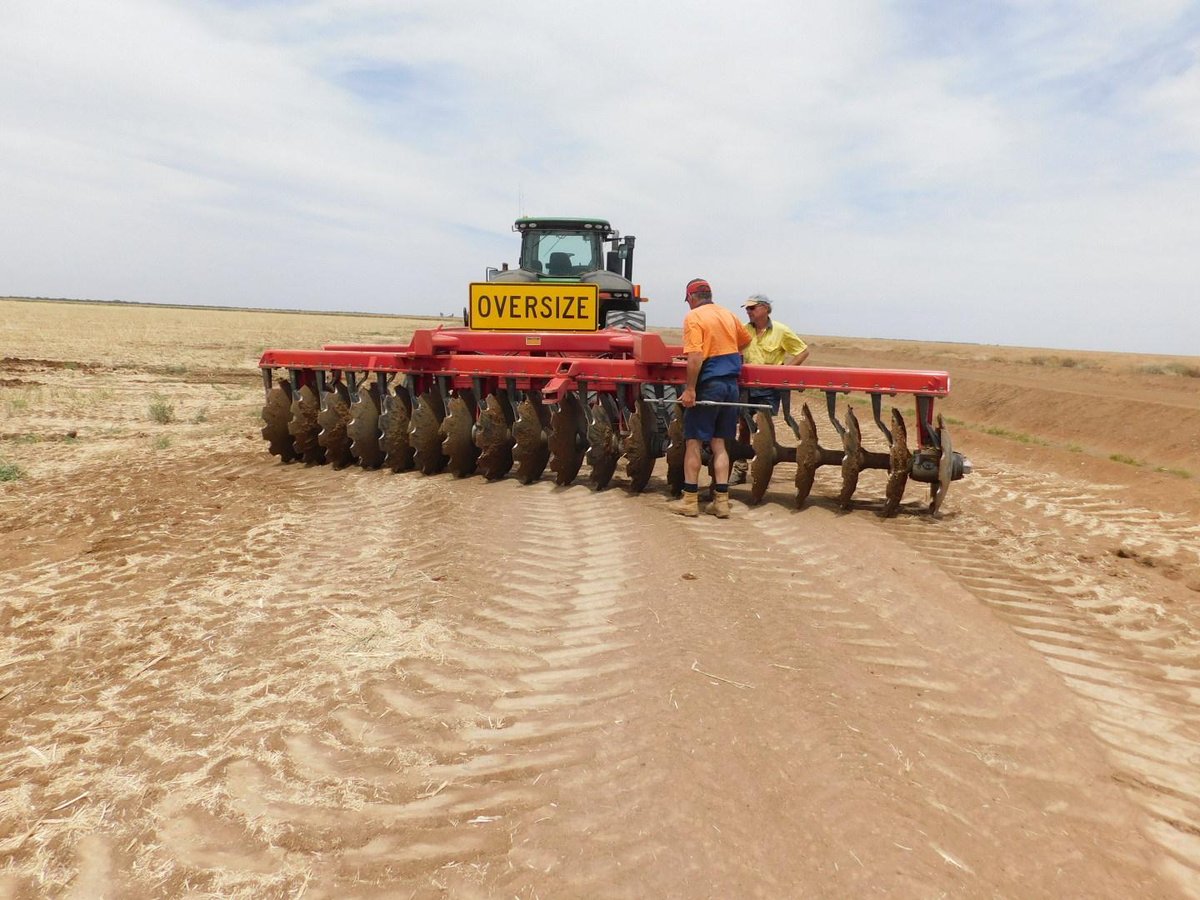

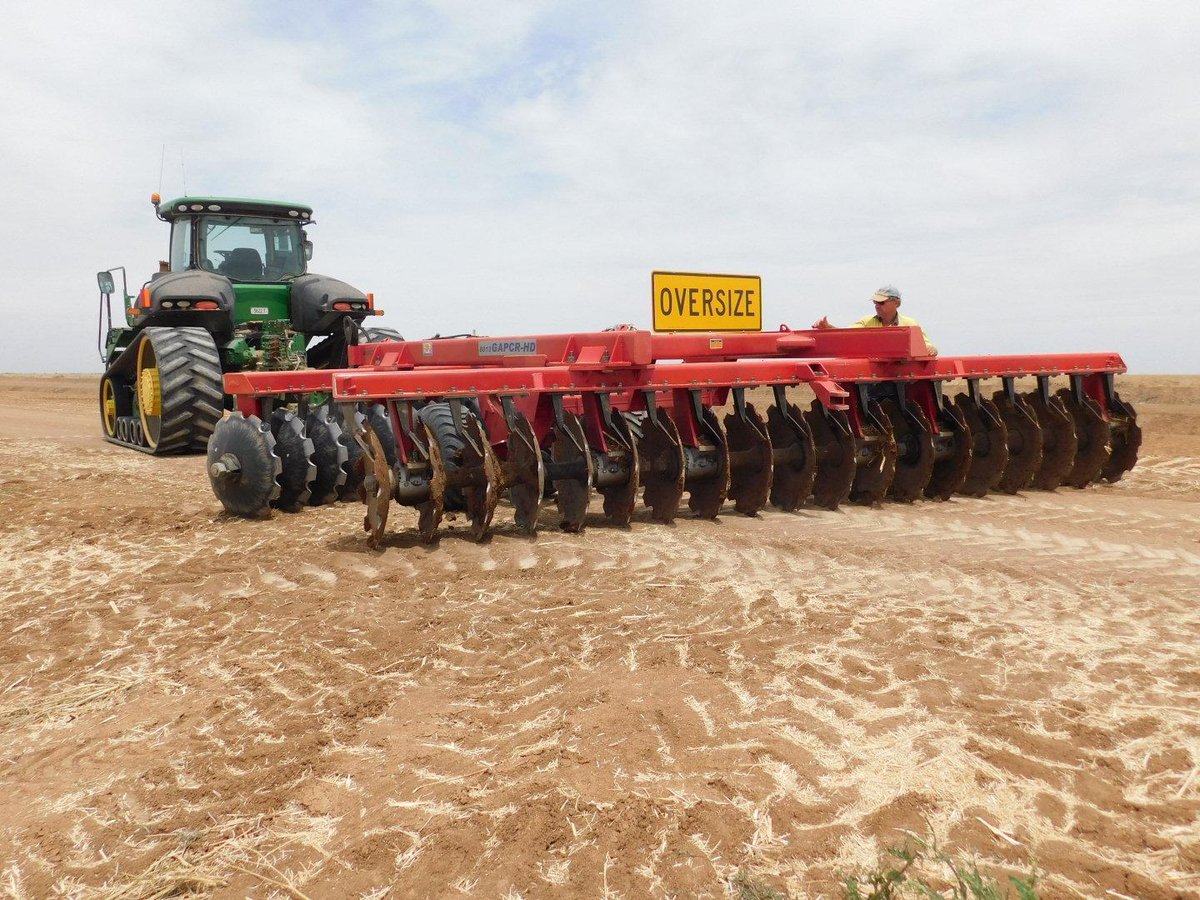

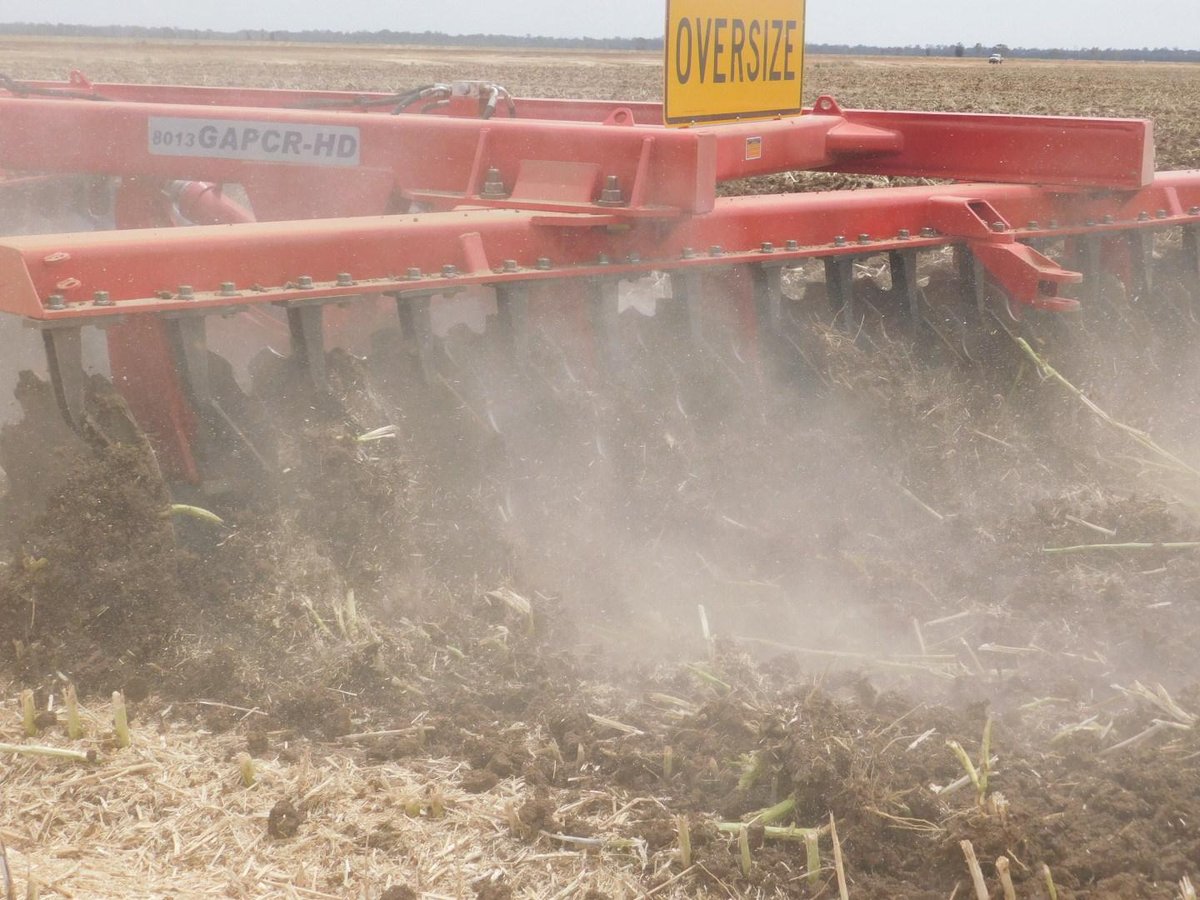

* Oversize Sign & Oversize Flags plus Flag Holders fitted as standard
* 30" & 32" Cover Discs Fitted to provide a leveler finish

Machine Specs:
* 35 x 34" x 9mm scalloped discs
* 6000 mm Working Width / 5,700mm Transport Width
* Maximum Working Depth is 200-250mm
* Weight is 9715 kg (Approx 288kg per disc)
* 420-440 Hp required (Minimum)
* Jackstand and Safety Chain Fitted Standard

Other models are available from 25 Plate Narrow Centre Section Model to a massive 45 Plate folding model. Please call our sales team for more info & to discuss what stock units we have available

Photos for illustration purposes only. Call sales team for more info
